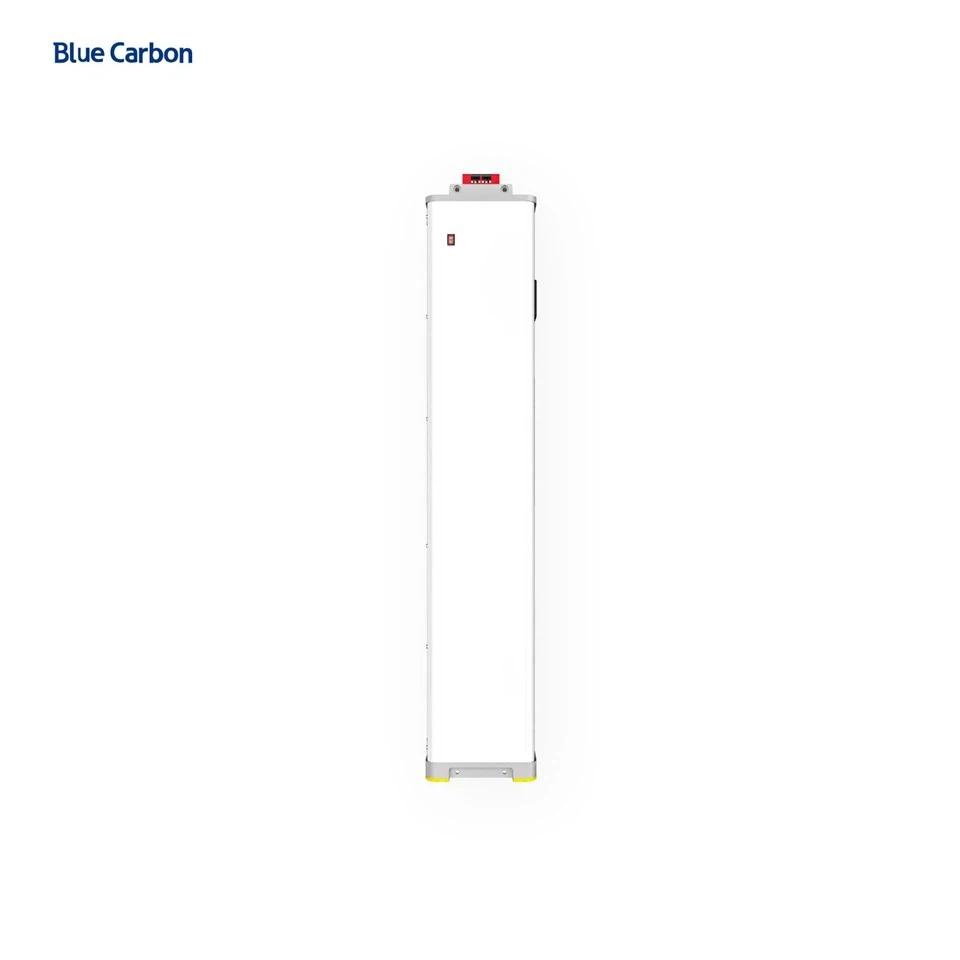

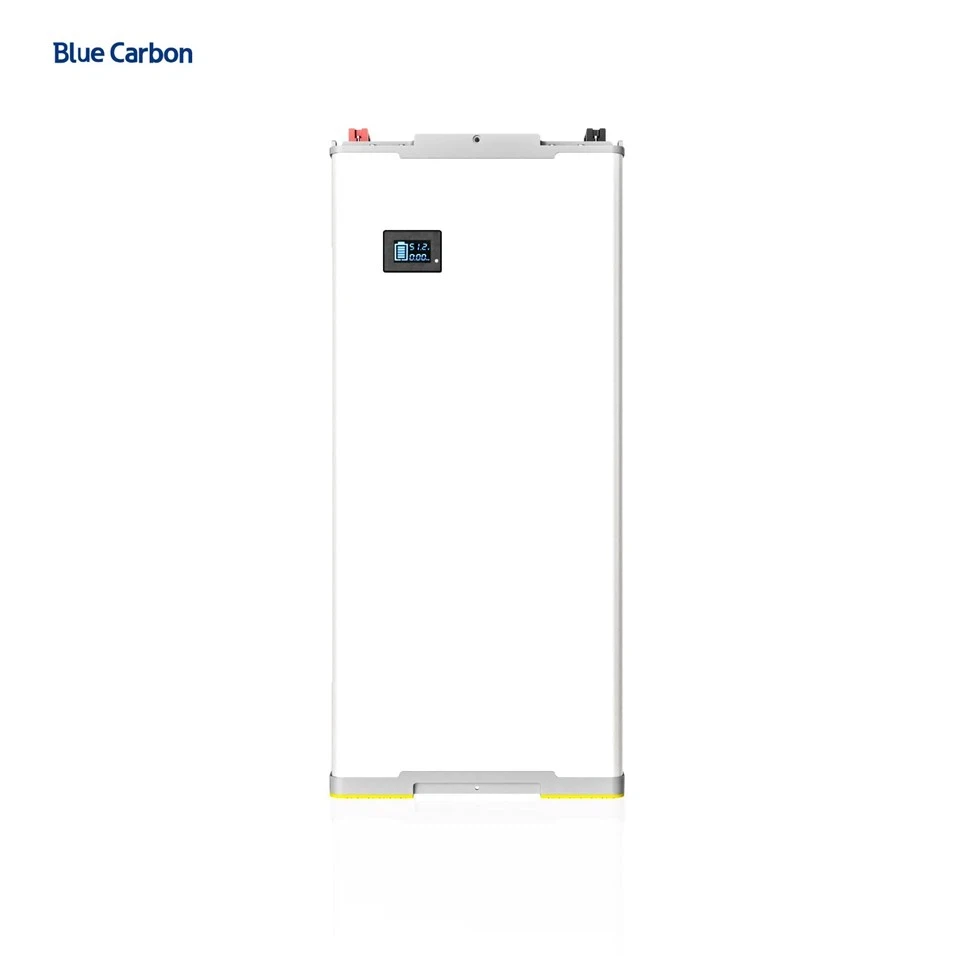

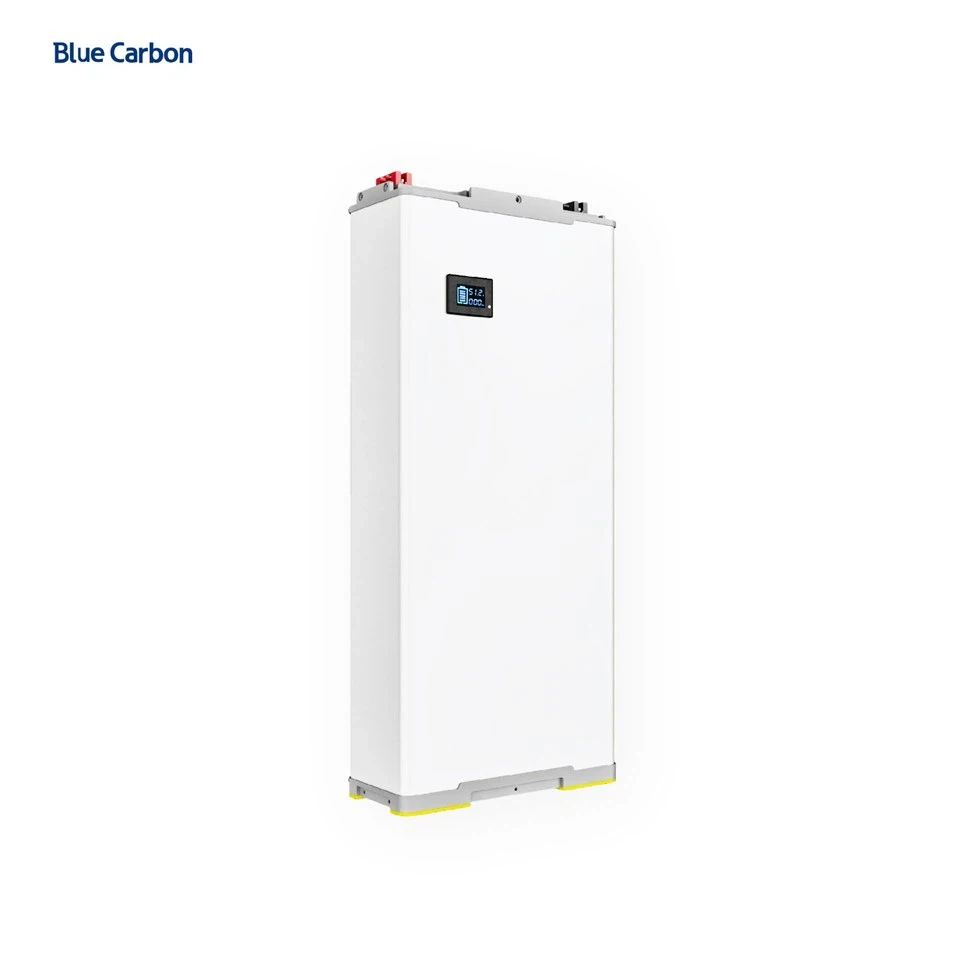

10.28kwh-12.8kwh-15.36kwh/48V LiFePO4 Solar Battery Vertical Stand

Top Selling Products

0.00 out of 5.0

(0 reviews)

There have been no reviews for this product yet.

Description

BlueCarbon Energy Storage System｜Your Home's "Safety Vault"

Core Component for New Policy PV-Storage Integration | UN38.3/CE/MSDS Certified | 6,000+ Cycle Life

Safety First – Military-Grade Protection

· Military aviation plugs: Zero corrosion in heat/humidity/salt spray (vs. 2-year copper corrosion)

· Voltage firewall (58-60V): Blocks overcharging risks (±0.1V precision vs. ±5V industry standard)

· Aerospace aluminum-magnesium casing: Withstands 1.5-ton impact

37% Lower Energy Costs

· 6,000 cycles = 20 years of daily use (competitors: ≤4,000 cycles)

· <3% monthly self-discharge: 90% charge after 6 months idle (competitors: >8%)

Smart 3-Stage Energy Management – Zero Solar Waste

Specification	User Benefit	Competitive Edge
48V/15.36kWh	Powers household AC for 3 days*	60% lighter than lead-acid
-20℃~60℃ Operation	Reliable in Arctic cold & tropical heat	Standard range: -10℃~50℃
300A Instant Start	Simultaneously runs fridge + AC	Traditional limit: 200A
100A Dual Charging	5-hour full recharge	Safe charge-discharge cycling

Key Specs Decoded for Real Life

Technical Parameters

Model：BCT-VI-48-200/250/300

Category	Parameter	Value/Description
Basic Specifications	Nominal Capacity	200 / 250 / 300 Ah
	Nominal Voltage	48 V (51.2 V)
	Energy (kWh)	10.24 / 12.8 / 15.36 kWh
Input Parameters	Full Charge Voltage	58.4 V
	Maximum Charging Voltage	60 V
	Input Voltage Range	58 V – 60 V
	Continuous Input Current	100 A
	Maximum Solar Panel Input Current	100 A
	Reverse-Conduction Delay Protection (Rshoot)	1000 ms
Output Parameters	Continuous Output Current	100 A
	Discharge Cut-off Voltage	44 V – 46 V
	Over-Discharge Delay Protection	1000 ms
	Short-Circuit Protection Delay	300 µs
	Short-Circuit Protection Recovery	Disconnect load
	Instant Start Current	300 A
	Instant Start Current Duration	10 s
Battery Performance	Cell Type	LiFePO₄ Battery (LFP)
	Storage Temperature Range	Short-term: –20 ℃ to 40 ℃ (within 1 month) Long-term: 10 ℃ to 35 ℃ (within 1 year)
	Operating Temperature Range	–15 ℃ to 60 ℃
	Recommended Temperature Range	10 ℃ to 40 ℃
	Storage Humidity	≤ 75 % RH
	Atmospheric Pressure	Below 5000 m elevation
	Self-Discharge (at 25 ℃)	< 3 % per month
	Depth of Discharge	> 80 %
	C-Rate Discharge	< 0.8 C
	Cycle Life	> 6000 cycles (at 0.5 C discharge)
Other	Certification Standards	UN 38.3 / CE / MSDS / DGM
	Product Size (W × H × D)	1198 ± 2 mm × 507 ± 2 mm × 212 ± 2 mm
