5kwh/24v Stackable Floor Type Battery Pack Without Screen

Top Selling Products

Reviews & Ratings

0.00 out of 5.0

(0 reviews)

Rate this Product

There have been no reviews for this product yet.

Description Downloads

Product Description

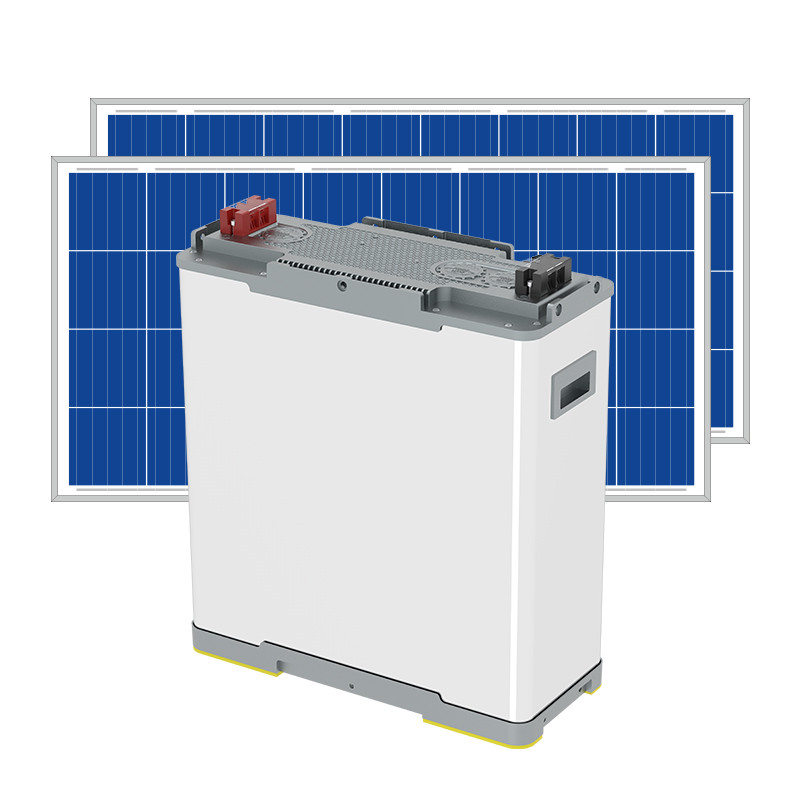

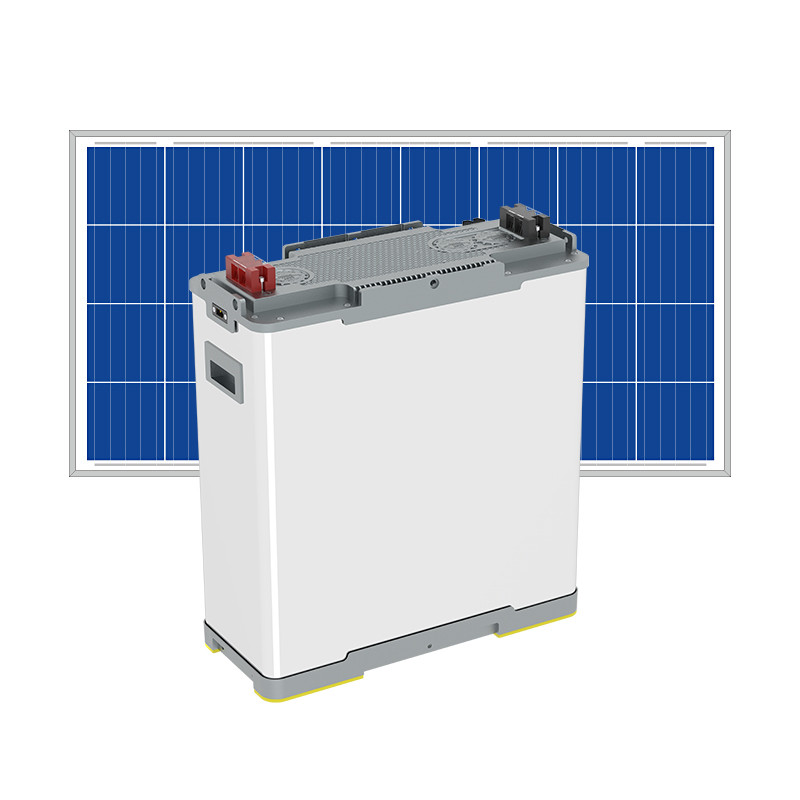

Blue Carbon PV Energy Storage System 5kwh Stackable Floor Type Power Can

Product Advantage

Small Size & Light Weight

1.Blue Carbon products use lithium iron phosphate batteries, the depth of discharge can reach 80%, and the depth of discharge of lead-acid batteries does not exceed 50%. which means 25-50% more usable capacity compared to the same size lead-acid battery, but typically 1/3 weight. 2.The circuit is designed so that the charging current will not exceed 0.2C, which ensures normal operation even under the climate conditions of Hailar (minimum daily average temperature -27°C).

Multiple Protection BMS

1.The lithium battery features an elegant BMS that provides multiple protections to keep the battery
operating safely:
2.Overcharge protection function -Overdischarge protection function
3.Over current protection function -Over voltage protection function
4.Temperature protection function -Short circuit protection function

Nominal Capacity	200Ah
Nominal Voltage	24V(25.6V)
Electricity(kWh)	5.12kWh
MPPT Electric Current	60A
Mppt Maximum charging voltage	150V
Full charge Voltage	28.8V-30V
Input Voltage Range	30V-150V
Continuously Use Output Current	100A
Discharge Cut-off Voltage	20V-24V
Depth of discharge	＞80％
Cycle life	> 5000 times (< 0.5c)
Certifification standards	UN38.3/CE/MSDS/DGM
Warranty	5 years

Top-Quality Lifepo4 Cell

1.Blue Carbon products use lithium iron phosphate batteries, the depth of discharge can reach 80%, and the depth of discharge of lead-acid batteries does not exceed 50%. The circuit is designed so that the charging current will not exceed 0.2C, which ensures normal operation even under the climate conditions of Hailar (minimum daily average temperature -27°C). 2.With longer span life LiFePO4 battey, over 12 years lifespan, ensure the whole setproducts' life span.，5 years warranty.

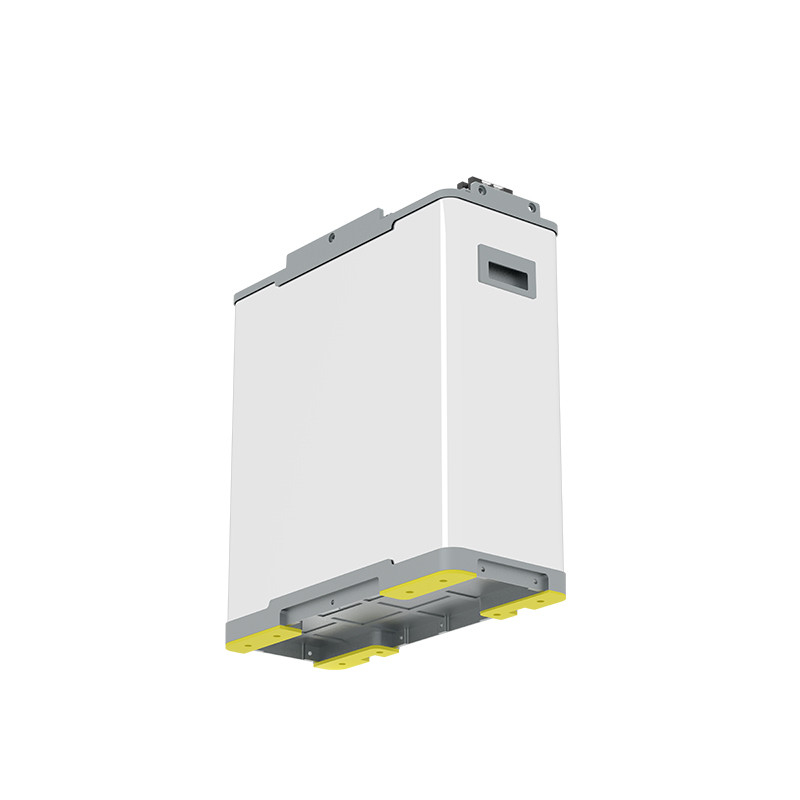

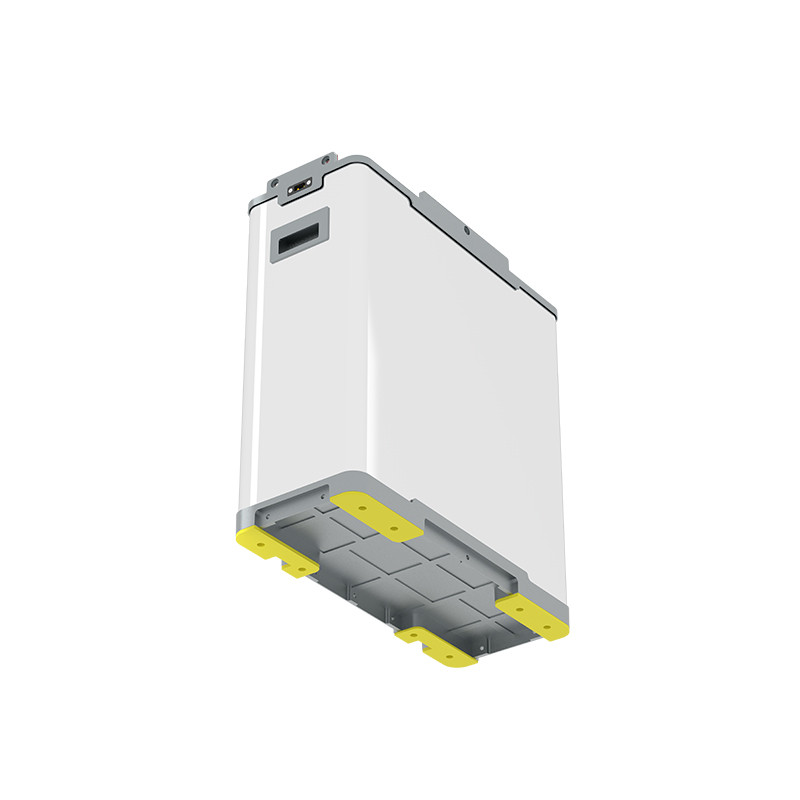

Rubber Feet Pad

The bottom of battery is equipped with rubber feet pad to increase safety and play roles of shock-proof buffer, anti-static,electrical insulation and so on.

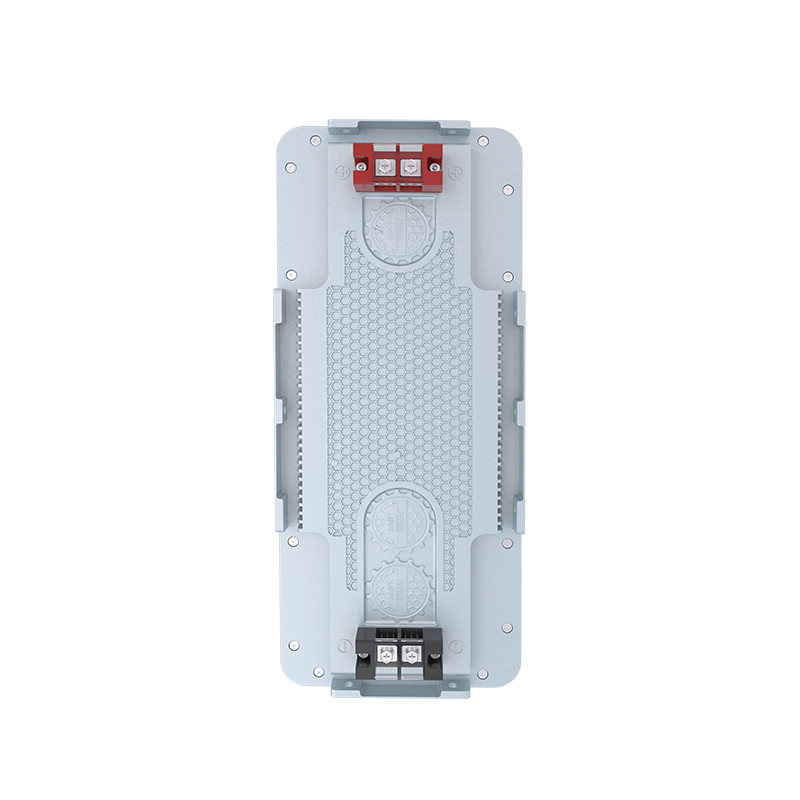

Plug

Never oxidize in high temperature, high humidity and high-salt environment; No risk of thermal runaway and fire

Long Cycle Life

1. The durability of LiFePO4 Battery is powerful and consumption is slow. The time of charging and discharging is more than 2000times. After 2000times circulation, the capacity of the battery is still more than 80%.

2.No matter the LiFePO4 Battery is in which conditions, it can be charged and discharged whenever you like, no need to discharge totally then charge for it. 3.LiFePO4 battery passed the strict safety testing, with higher safety performance.

Product connection

The batteries support (4S) series or (4P) parallel connection to scale the system, and provide increased energy (up to 24V or1200Ah) as needed.

Wide Application

1.For no city power areas, the battery pack can be charged by solar panels and used for night lighting; 2.For the areas that city power is expensive, the battery pack can be charged during the electricity valley value period, and used at the peak power period; 3.For the areas which power off from time to time, the battery pack can be used as UPS, to avoid information loss caused by sudden power outage. 4.The battery pack is applicable to commercial lighting, industrial lighting, home lighting, outdoor lighting, camping tourism, farming, planting, the night market stalls, etc.

Why Blue Carbon

Blue Carbon Technology Inc. designs, manufactures and markets of solar module products for residential, commercial and industrial application worldwide. We put customers' needs first, and we are devoted to progress, innovation and ethical choices. Solar energy is about empowerment, and that's something we take very seriously. Our mission is to deliver innovative photovoltaic technologies for building integration to generate renewable solar electric power. Our hope is to secure the health of our planet for future generation by transforming our infinite supply of sunshine into a practical energy for humanity.

Strict Test & Inspection Blue Carbon battery pack undergoes rigorous quality control inspection at each stage of assembly and strictly tested to ensure a reliable and consistent product.

High-standard Production Blue Carbon lithium batteries are built to the high standards from the inside out, quality and safety are guaranteed to work in various applications

Certificate
